Description

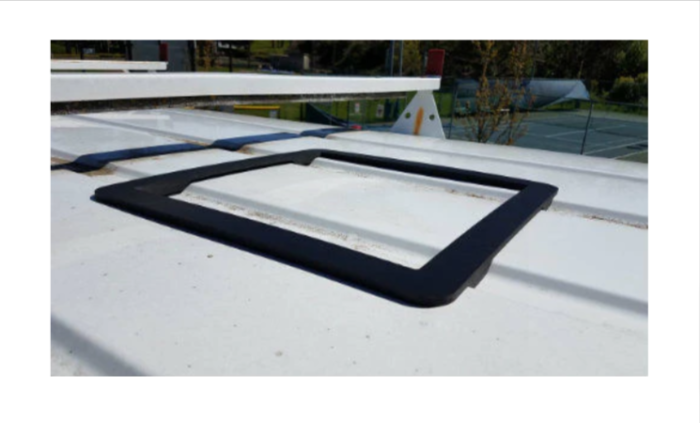

1992+ Ford E-Series Roof Vent Adapter
Adapter Specifications:
The adapter fits a 14″ x 14″ opening and features outside dimensions of 16 3/4 x 16 3/4. It’s compatible with Maxxair Deluxe series and Fan-tastic Vent fans. For other Maxxair vents, a wider adapter is required.
Framing Strips: The framing strips, made of expanded PVC, are bonded to the roof using a thick bead of Windoweld. They provide support for the vent, especially if the span between the OEM roof beams exceeds 18″. Additionally, they serve as a backing for the screws holding up the vent interior bezel. Longitudinal strips require cutting to fit the installation bay.
Roof Vent Adapter Installation Tips:
Preparation: Firstly, de-gloss the area with a Scotch-brite pad, clean with isopropyl alcohol, and let dry thoroughly.
Application: Next, apply Sikaflex 221 adhesive to the face of the adapter, press down onto the roof, and make a fillet with excess adhesive.
Interior Frame Installation: Then, assemble the interior frame with provided screws and glue to the roof using Sikaflex 221.
Fan Installation: Finally, use butyl tape to cover the fan flange, place it onto the adapter, drill pilot holes, and tighten screws lightly. Seal with self-leveling Dicor or brush-on Flexseal.
Maintenance: Check sealant integrity periodically and reapply as needed. Butyl tape may be placed in the freezer for easier application if stuck to plastic.
DISCLAIMER: Installers assume all risks associated with roof-mounted items. The product is sold “as is,” and no warranty of merchantability is provided.
