1992+ Ford Econoline 3-Inch Suspension Lift Kit – E150–E350 | Fox Shocks + Radius Arms

Name: 1992+ Ford Econoline 3-Inch Suspension Lift Kit – E150–E350 | Fox Shocks + Radius Arms
Brand: Weldtec Designs
SKU: WTD-FES-OC-3-ERA
Availability: InStock

$2,995.00 – $3,495.00

Complete 3-inch front and 2-inch rear suspension lift kit for 1992+ Ford Econoline E150, E250, and E350 vans. Features extended radius arms, Fox Performance Series shocks, and upgraded coils for improved ride quality and clearance for 33″ tires. Includes all necessary hardware; radius arm brackets require welding. Taxes included.

Click Here to schedule

Vehicle Year

Model

OPTIONS

Clear

Add to compare

Add to wishlist

SKU: WTD-FES-OC-3-ERA Category: Ford Econoline Suspension Tags: weldtec suspension kits, Econoline E250 suspension upgrade, Class C RV lift kits, Fox shocks Ford Econoline, Ford Econoline suspension lift, weldtec dealers portland oregon, weldtec

Description

1992+ Ford Econoline 3-Inch Suspension Lift Kit – E150–E350 | Fox Shocks + Radius Arms

This Ford Econoline 3-inch suspension lift kit is designed to level your van, improve ride quality, and clear up to 33″ tires. Compatible with E150, E250, and E350 vans from 1992 to present, the kit includes extended radius arms, Fox shocks, and upgraded coils — delivering both performance and a more aggressive stance.

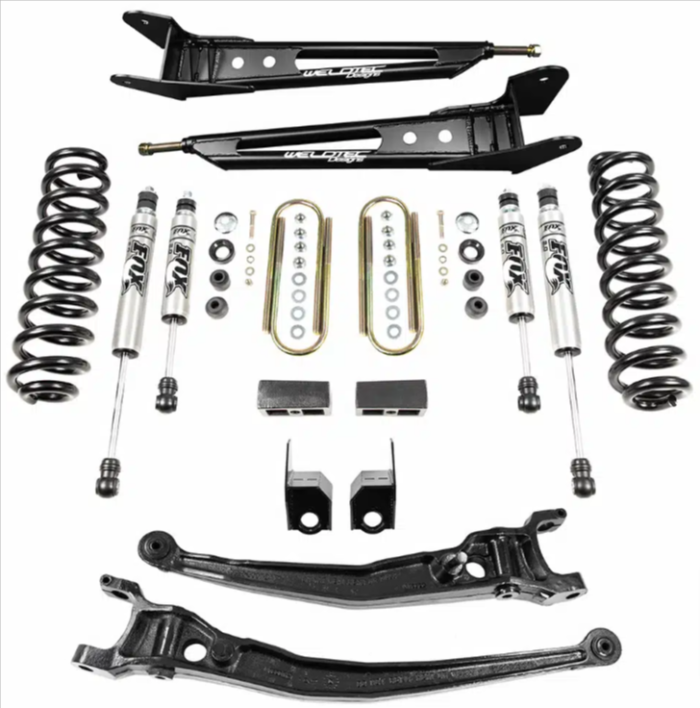

What’s Included:

(2) Modified I-Beams with Moog Pivot Bushings
(2) Extended Radius Arms
(2) Weld-On Radius Arm Brackets
(1) Radius Arm Bushing Kit
(2) 3″ Front Lift Coil Springs
(2) 2″ Rear Lift Blocks
(2) U-Bolts – Econoline-specific
(4) Fox Performance Series 2.0 IFP Shocks
(1) Shock Hardware Kit

Fitment:

Vehicle: 1992–2024 Ford Econoline E150, E250, E350
Lift: 3″ Front / 2″ Rear
Wheel Travel: 6″ Front
Max Tire Size: 33″ (with extended radius arms)
Wheel Specs:
- Size: 17×8.5 or 17×9
- Lug Pattern: 8×6.5
- Backspacing: 4.75″
- Offset: 0mm to -18mm
- Hub Bore: 131mm

Performance Benefits:

Eliminates factory rake (“stink bug” stance)
Clears larger tires for off-road use
Retains proper geometry with extended radius arms
Fox shocks offer superior ride comfort on and off-road

Installation Notes:

Weld-on radius arm brackets are required (included)
Professional installation strongly recommended
Reach out for our installation PDF or recommended installers

Core Charge Policy:

A $500 core charge is added to each kit and fully refunded once your original I-beams are returned within 30 days. Return shipping is customer’s responsibility. Need more time? Let us know to arrange an extension.

Frequently Asked Questions:

Q: Can I run 33″ tires with this kit?
Yes — this kit supports 33″ tires when installed with the included extended radius arms.

Q: Do I need to weld anything?
Yes — the radius arm brackets must be welded to the frame.

Q: Is this compatible with all E-Series vans?
Yes — this kit fits 1992 to current E150, E250, and E350 Econoline vans.

We Do Installs in Portland, Oregon.

To Schedule with us today, CLICK HERE

Would you like to learn more about our sister company Northwest Overland a one stop shop for all your van conversion needs?

To Schedule with our parent company, CLICK HERE

Thank you for choosing Country Offroad!

Additional information

Weight	99 lbs
Dimensions	48 × 36 × 24 in
Vehicle Year	1992 – 2007 , 2008 – 2014
Model	E150 , E250 / E350
OPTIONS	CORE CHARGE , HAVE IT INSTALLED
